Minmum Distortion Embedding with Anchored ConstraintsΒΆ
import numpy as np
import time
from fury.window import record
from helios import NetworkDraw
from helios.layouts.mde import MDE
# from https://github.com/cvxgrp/pymde/blob/main/examples/anchor_constraints.ipynb
depth = 9
n_items = 2**(depth + 1) - 1
edges = []
stack = [0]
while stack:
root = stack.pop()
first_child = root*2 + 1
second_child = root*2 + 2
if first_child < n_items:
edges.append([root, first_child])
stack.append(first_child)
if second_child < n_items:
edges.append([root, second_child])
stack.append(second_child)
# these are the indices of the nodes that we will pin in place
anchors = np.arange(2**depth) + 2**depth - 1
radius = 20
# pin the root to be at (0, 0), and the leaves to be spaced uniformly on a circle
angles = np.linspace(0, 2*np.pi, anchors.shape[0] + 1)[1:]
anchors_pos = radius * np.stack([np.sin(angles), np.cos(angles)], axis=1)
centers = np.random.normal(size=(n_items, 2))*5
centers[anchors] = anchors_pos.copy()
network_draw = NetworkDraw(
positions=centers,
scales=.4,
node_edge_width=0,
#colors=(1, 0,0),
edge_line_opacity=.5,
edge_line_color=(0, 0, 0),
marker='3d',
window_size=(500, 500),
edges=np.array(edges)
)
mde = MDE(
np.array(edges), network_draw,
constraint_name='anchored',
anchors=anchors.astype('float32'),
anchors_pos=anchors_pos.astype('float32'),
use_shortest_path=True
)
interactive = False
if not interactive:
mde.start(
100, 1, 300,
record_positions=False, without_iren_start=True)
time.sleep(30)
mde.stop()
else:
mde.start(
3, 300, 1,
record_positions=True, without_iren_start=False)
if interactive:
network_draw.showm.initialize()
network_draw.showm.start()

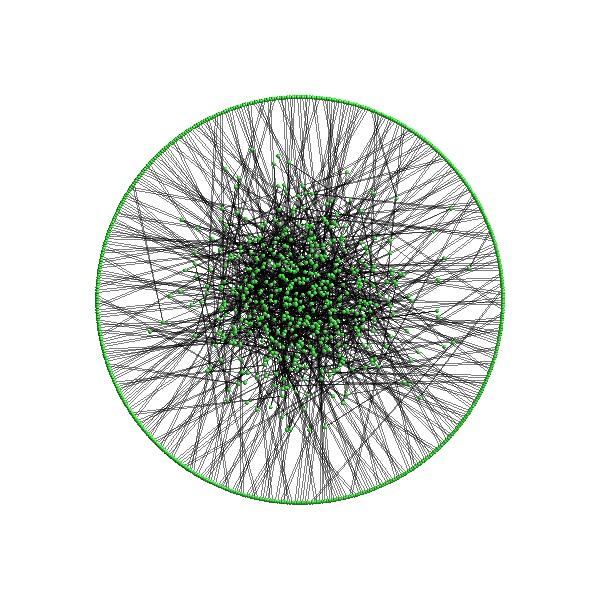

record(
network_draw.showm.scene, out_path='viz_mde.png', size=(600, 600))
Total running time of the script: ( 0 minutes 30.180 seconds)
